DIY Pool Noodle Horse Obstacle

DIY Pool Noodle Obstacle Plans

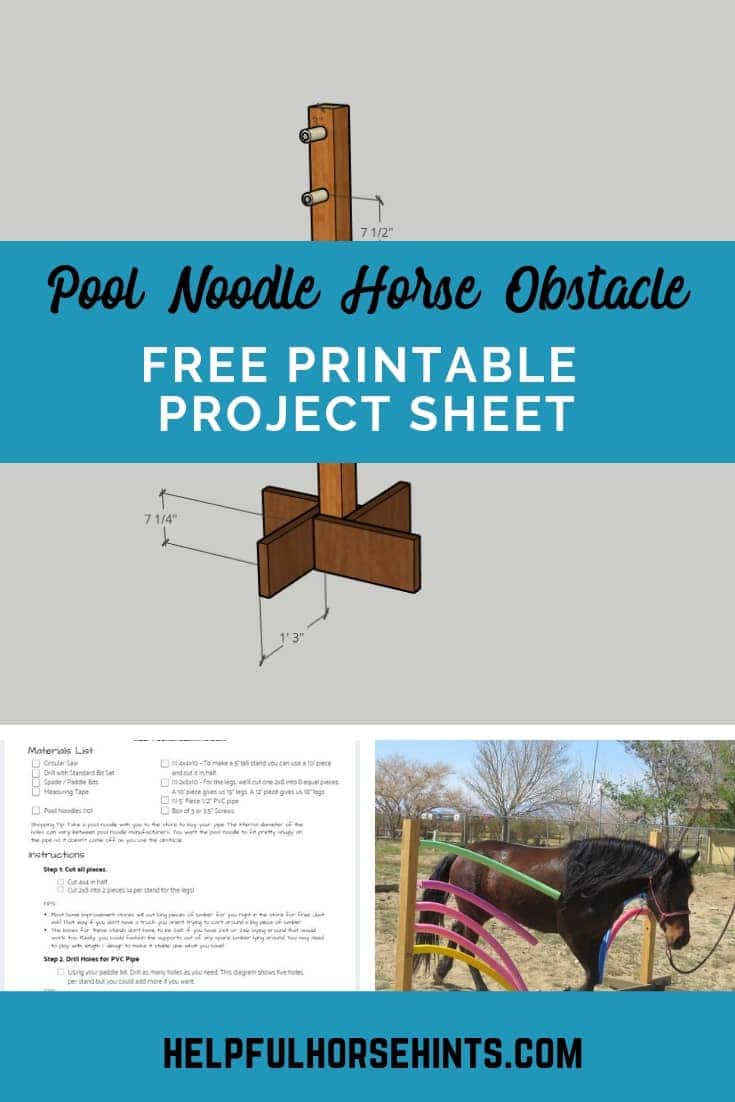

Follow my blog with BloglovinDIY Pool Noodle Obstaclefree printable project sheet horse obstaclePool noodle horse obstacles are great for desensitizing horses to having their body and legs touched. The great thing about this obstacle is it can be used for any age horse. Start off on the ground and progress to navigating the obstacle under saddle.

During summer months, pool noodles are regularly available at most big-box type stores like Walmart, Home Depot and Target. A lot of the dollar discount stores will also carry them. During the winter, or just anytime you are having trouble finding them, Amazon actually has a pretty good deal. Better yet, they are available on Prime if you have that service (which I love).

This post contains affiliate links. Please read my disclaimer for more information about affiliate links.

Materials List

Tools Needed

  • Circular Saw
  • Drill with Standard Bit Set
  • Spade / Paddle Bits
  • Measuring Tape
  • 3 or 3.5″ Screws
  • (1) 4x4x10 – To make a 5′ tall stand you can use a 10′ piece and cut it in half.
  • (1) 2x8x10 – For the legs, we’ll cut one 2×8 into 8 equal pieces. A 10′ piece gives us 15″ legs. A 12′ piece gives us 18″ legs
  • (1) 5′ Piece 1/2″ PVC pipe
  • Pool Noodles (Amazon has a set of 35 for $58.76 w/ Free Shipping…that’s ~$1.67 each)..It’s off season now but you can get them from Amazon at the link below. We’ll use 10 here and have other obstacles coming up where we will use the rest!

Shopping Tip:

  • Take a pool noodle with you to the store to buy your pipe. The internal diameter of the holes can vary between pool noodle manufacturers. You want the pool noodle to fit pretty snugly on the pipe so it doesn’t come off as you use the obstacle.

Step 1. Cut all pieces.

Cut 4×4 into half. Cut 2×8 into 8 pieces.

TIPS:

  • Most home improvement stores will cut long pieces of lumber for you right in the store for free. Just ask! That way if you don’t have a truck you aren’t trying to cart around a big piece of lumber.
  • The bases for these stands don’t have to be 2×8. If you have 2×4 or 2×6 laying around that would work too. Really, you could fashion the supports out of any spare lumber lying around. You may need to play with length / design to make it stable. Use what you have!

Step 2. Drill Holes for PVC Pipe

Using your paddle bit. Drill as many holes as you need. This diagram shows five holes per stand but you could add more if you want.

TIPS:

  • Lay the 4×4 side by side to ensure holes are drilled evenly.
  • Take a pool noodle with you to the store to buy your pipe. The internal diameter of the holes can vary between pool noodle manufacturers. You want the pool noodle to fit pretty snugly on the pipe so it doesn’t come off as you use the obstacle.

Pool Noodle Horse Obstacle Top

Pool Noodle Horse Obstacle Hole Distance

Step 3: Assemble Base

For this step, you should have four even pieces for each base. Use wood screws (I recommend 3″ or 3.5″ Deck Screws) to secure the base to the 4×4.

Pool Noodle Horse Obstacle Base-Easy

Step 4: Cut PVC and Insert Into Holes

You will want to cut your PVC into 4-5″ long pieces. Shorter pieces will allow the pool noodles to break away or pop off more easily. Longer pieces will give them more resistance to detaching. Remember, about 2″ goes into the wood so that leaves 3″ sticking out to go into the noodle if you cut a 5″ piece. (I prefer longer pieces)

Pool Noodle Horse Obstacle Base- PVC Noodle Holders

Pool Noodle Horse Obstacle Base- PVC Noodle Holders All In

Step 5: Add Noodles!

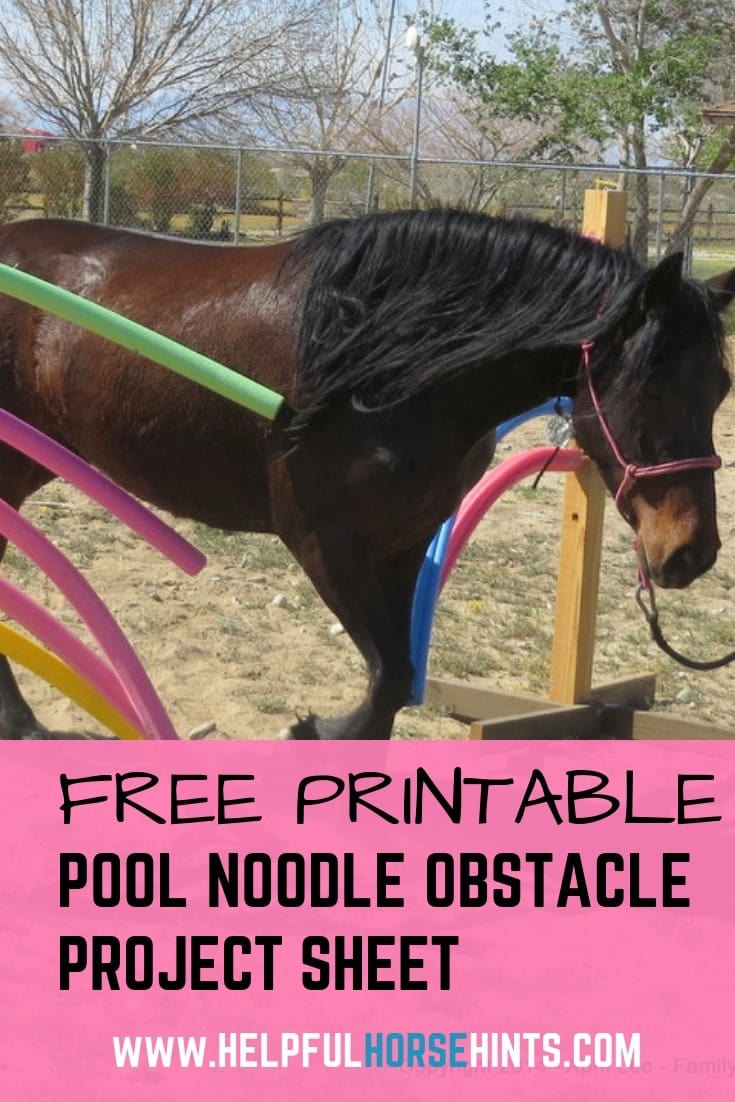

Completed Pool Noodle Obstacle

Note: This pool noodle obstacle has 2×4 for the base. You can absolutely use what you have to save on cost!

Alternate Base

Because the 2×8 are a little high, here is an alternate idea for the base. Find the midpoint of your piece (in this case 7.5 Inches) and cut a triangle out of each piece. This still leaves you with the wide base at the bottom but lowers the profile towards the top.

Pool Noodle Horse Obstacle Base- Alternate Base
